Wauquiez Pilot Saloon 43

CONSTRUCTION

• Fiberglass hull
• Twaron Interlink Duralite, vacuumed-epoxy infused, closed-cell, foam-core composite hull
• Solid lead bulbed keel

 DIMENSIONS

• Length Overall (LOA): 13.31 m
• Length at Waterline (LWL): 11.35 m
• Beam: 4.17 m
• Max Draft: 1.75 m
• Displacement: 12,474 kg



DIMENSIONS

• Length Overall (LOA): 13.31 m
• Length at Waterline (LWL): 11.35 m
• Beam: 4.17 m
• Max Draft: 1.75 m
• Displacement: 12,474 kg

MECHANICAL

• Yanmar 4JH2-DTE diesel 88hp (65kW) (last service Oct 2023)
• Bowthruster Vetus 75kgf 12v (fitted 2018)

• Cruising speed: 7 knots on engine
• Maximum speed: 8 knots on engine
• 3-blade Max prop with Spur rope cutter
• Shaft drive ‘Volvo’ shaft seal (replaced 2023)
• Engine spares

PERFORMANCE

• SA/D ratio: 21.9
• Cruising Speed: 7 knots
• Max Speed: 8 knots



TANKAGE

• Fuel tank (Aluminium with level gauges in each): 1x 400L + 1x 200L
• Water tank (Aluminium): 1x 400L with water consumption meter

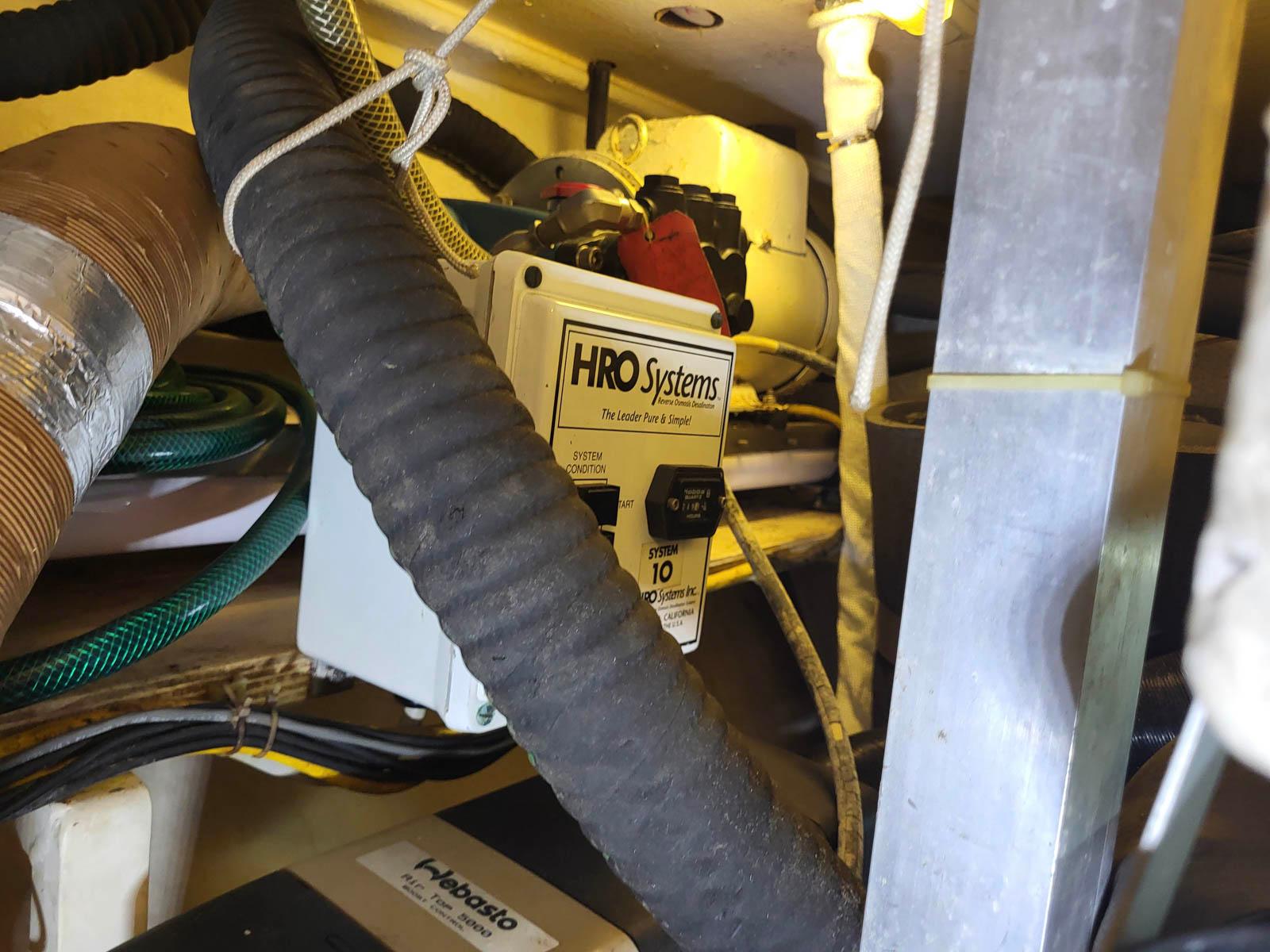

• Water maker: Sea Recovery 220V 200L per hour (Not in commission)
• Water heater: 1x 40L calorifier with 220V heater element
• Holding tank (Aluminium): 1x 120L with level gauge, odour filter in breather, deck pump-out facility, or electric pump out to sea

ELECTRICAL

• 3x Service batteries AGM Victron 12V/240Ah (replaced Apr 2024)
• Engine battery 12V/210Ah (2012)
• Generator battery (2017)
• Bowthruster Battery (2018)
• Battery charger Freedom 20 100A + Inverter 2Kw (2007)
• Battery charger Mastervolt 40A (spare)
• Battery monitor Xantrex Link 2000 (2007)
• 2x 125W Wattstunde Solar Panels with Victron MPPT Controller (fitted 2022)
• 2x Battery isolator (replaced in 2022)
• Engine alternator 100A

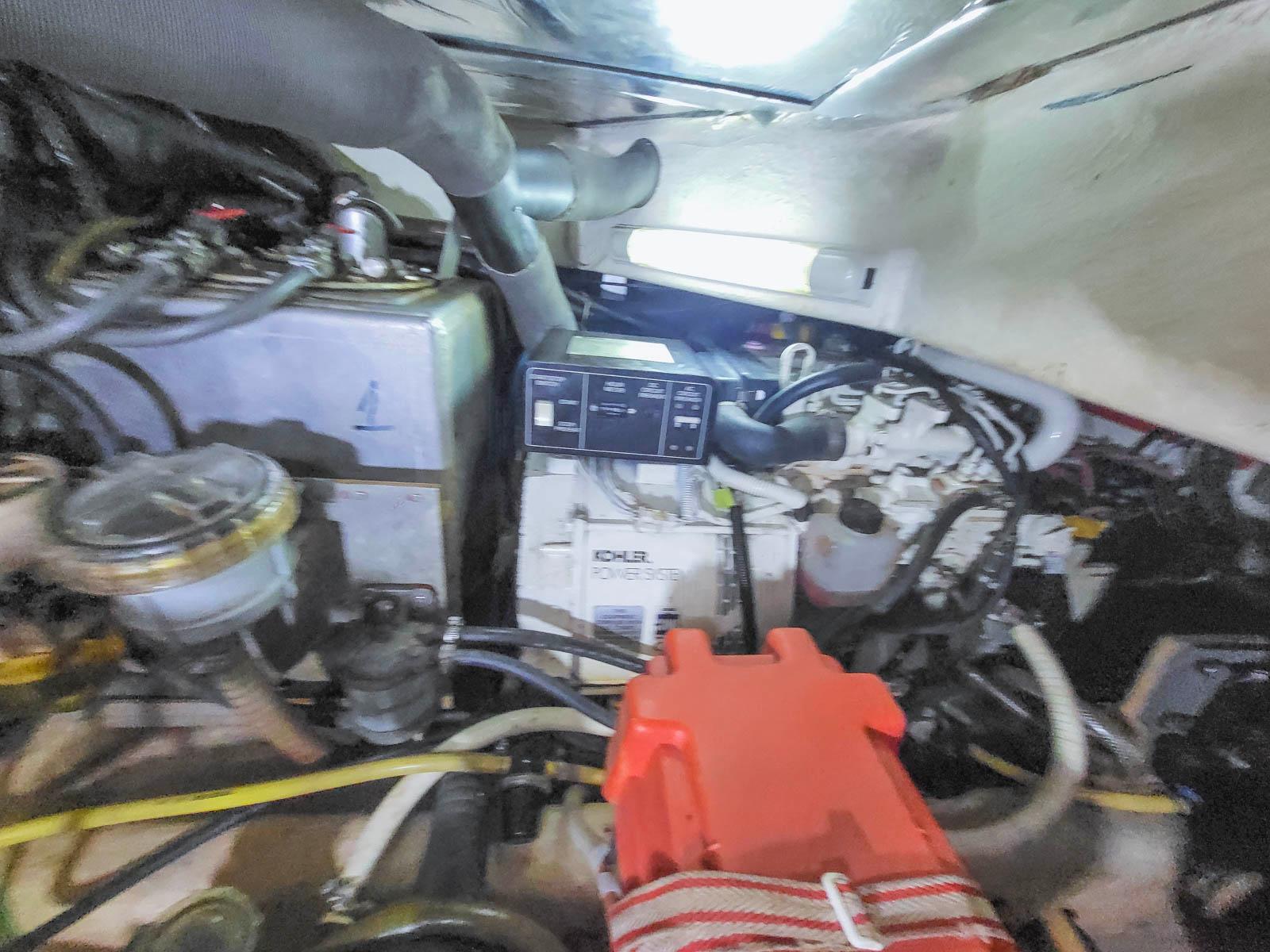

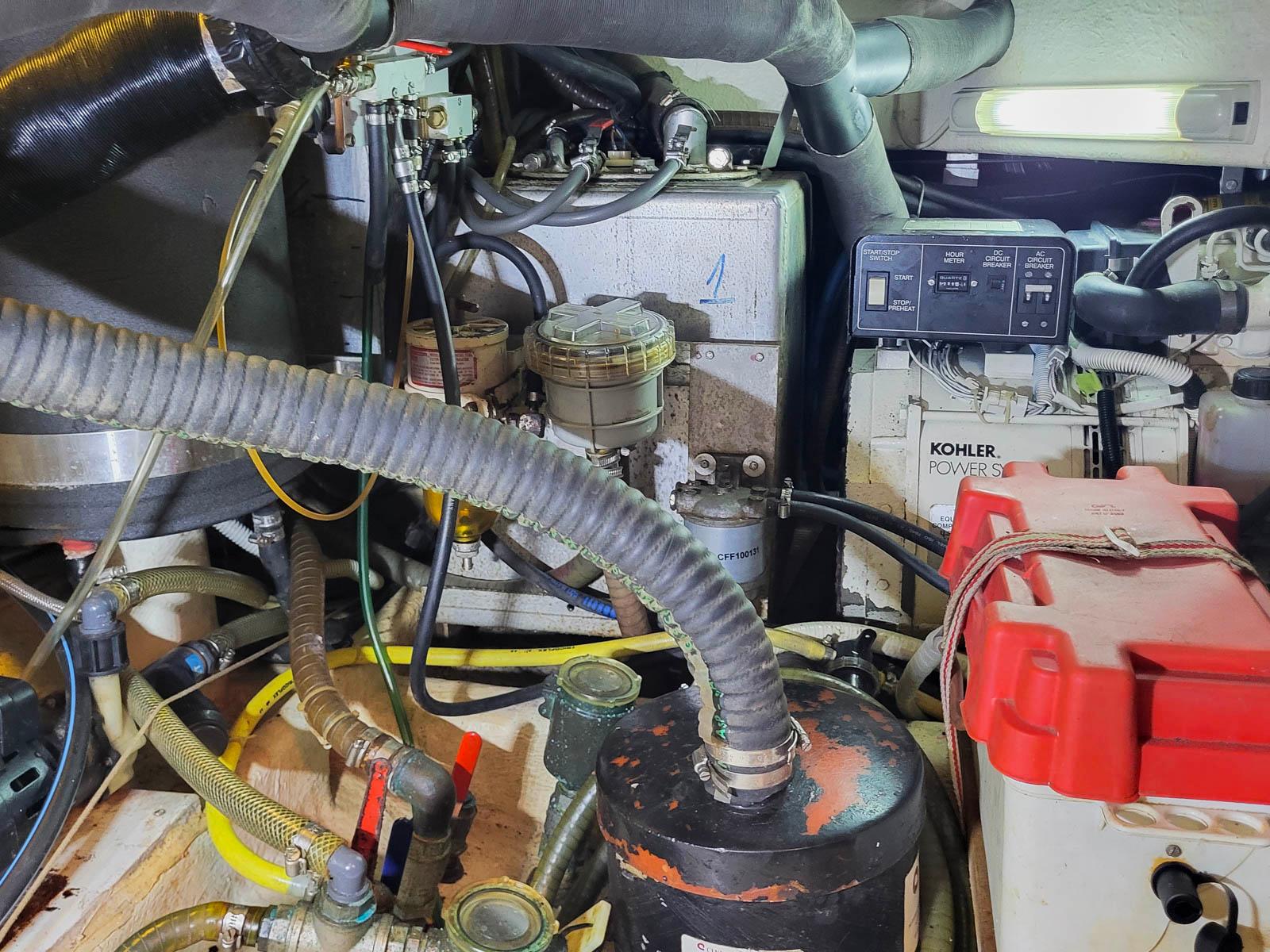

• Generator Kohler 6.5Kva @ 220V (1300 hours)
• Shore power 16A @ 220V

SAILS

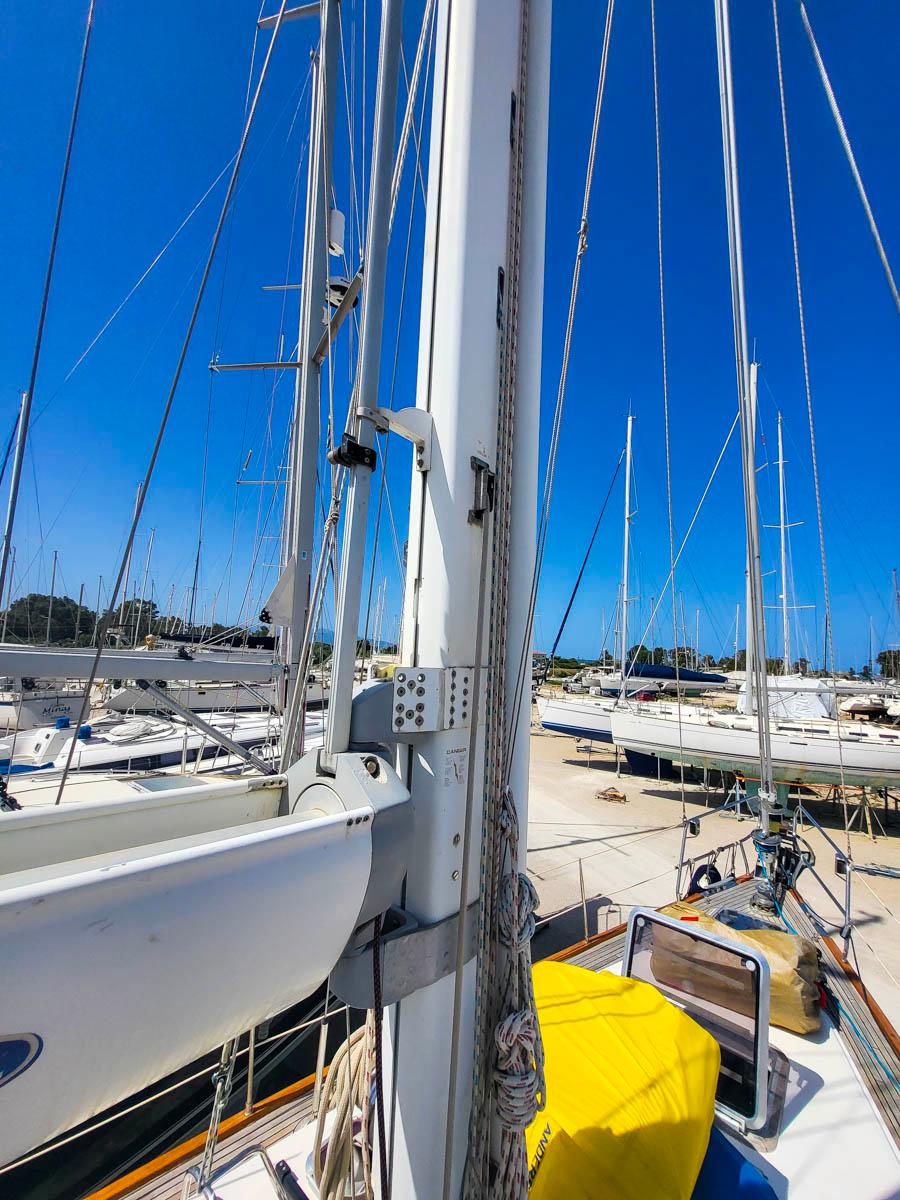

• Masthead Sloop/Slutter rig (Sparcraft)
• S/S wire 12 and 10mm standing rigging material, insulated backstay for SSB antenna
• Dual forestay with Profurl manual furling drums (Standing rigging replaced 2015)

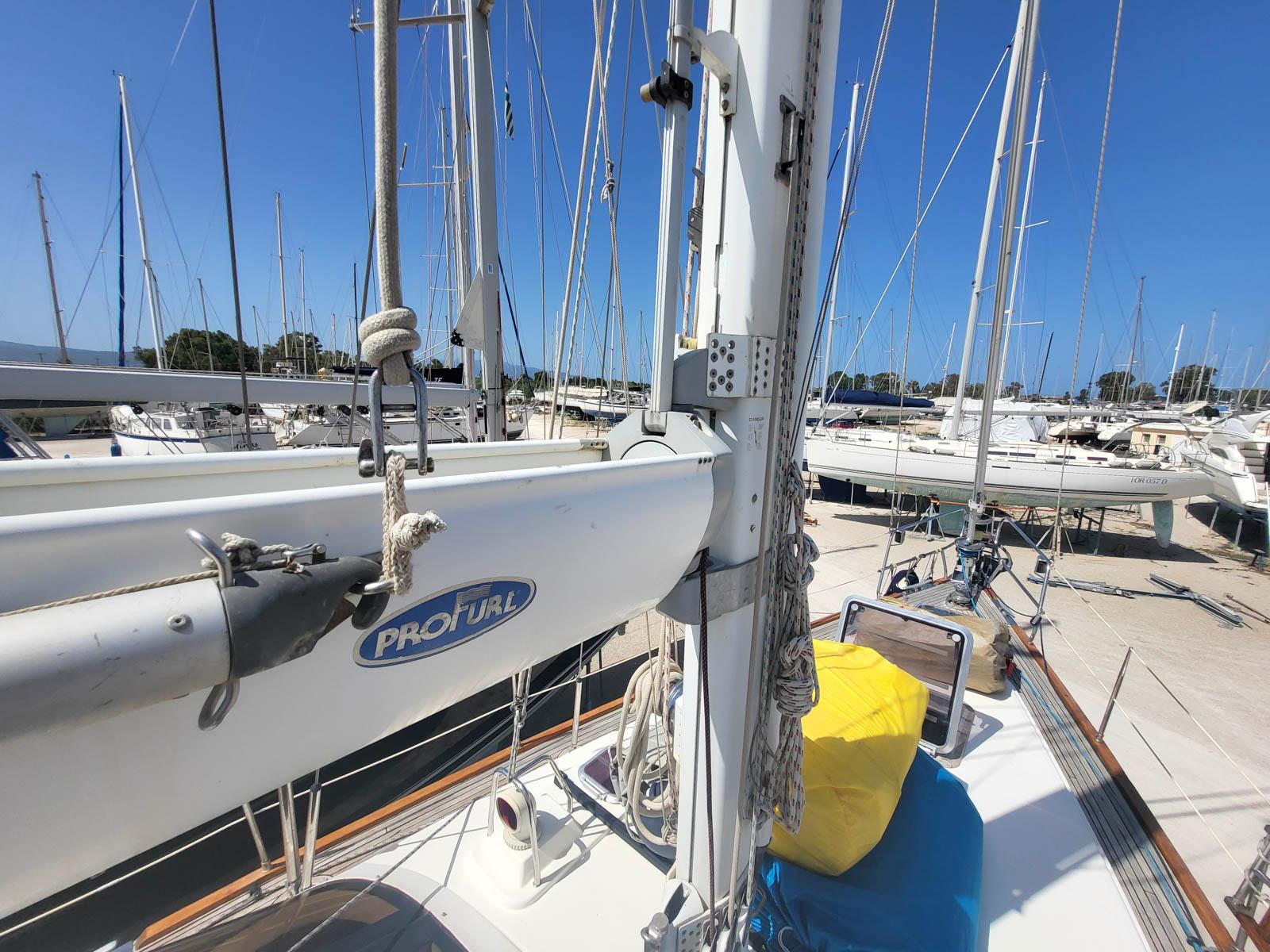

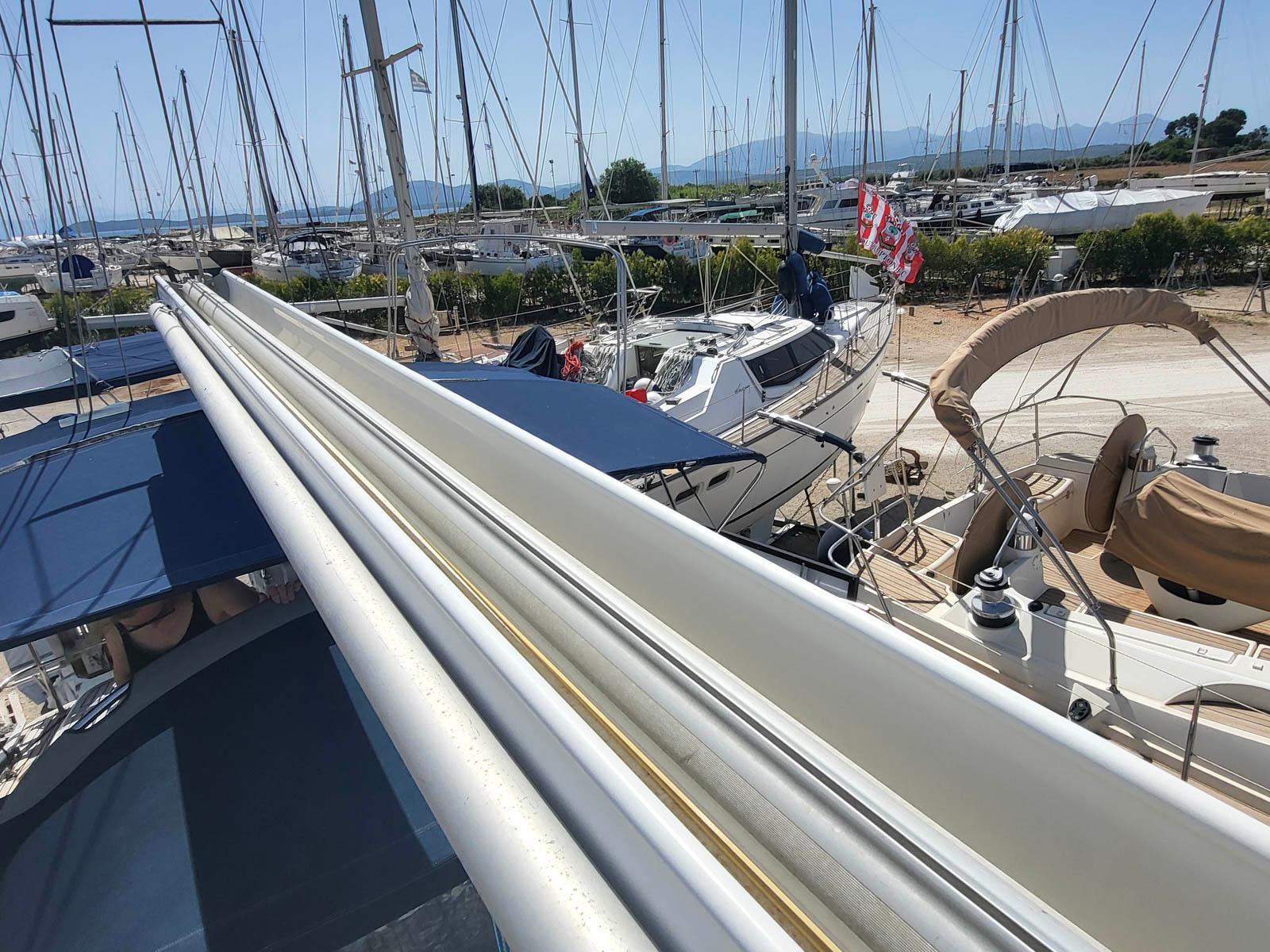

• Profurl MK3 in boom furler
• Walder Boom brake
• Mainsail: Fully Battened Doyle Dacron (2008) regularly serviced
• Genoa: 150% Elite Laminate (2003)
• Self-Tacking inner jib: Sanders Vectron (2019)
• Alternative inner jib: Cognac Velas Yankee (2007)

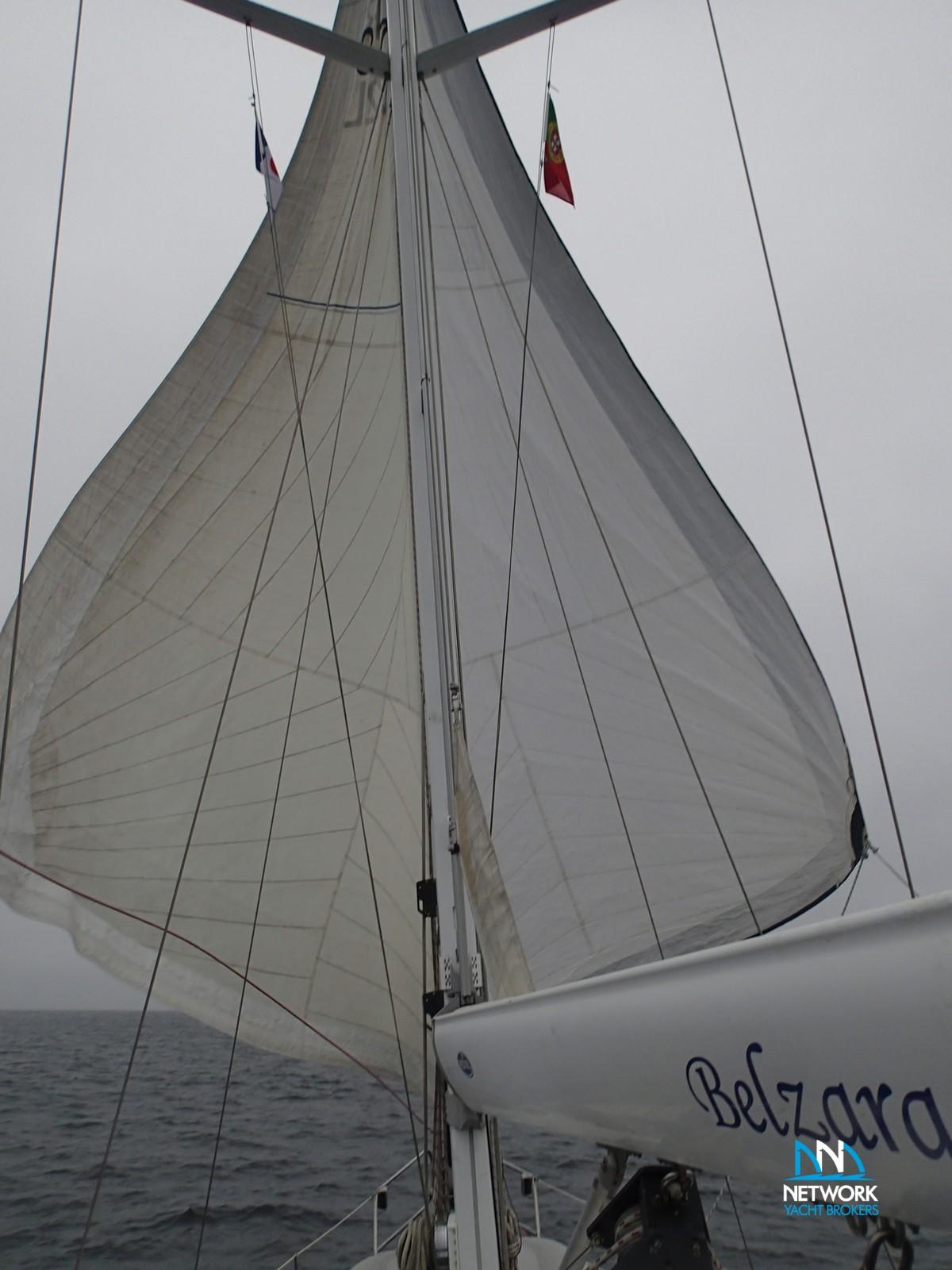

• Gennaker: Sobstad with sock
• Spinnaker pole on track at mast plus whisker pole stored on boom
• Two self-tailing 2 speed Lewmar Genoa sheet winches ST54
• Two self-tailing 2 speed Lewmar Spinnaker sheet winches ST40
• One self-tailing 2 speed Lewmar Halyard winch on mast ST44
• One self-tailing 2 speed Lewmar electric winch on starboard coach roof ST44 for mainsheet, main halyard, furling line, and Autotack jib sheet (Motor rewound 2018)
• All winches have canvas winter covers

NAVIGATION

• Suunto compass
• Raymarine MFD Axion Pro 9 (2023) mounted in Scanstrut pod at helm
• Raymarine ST60 speed log and echo sounder
• Raymarine ST60+ wind (2011)
• Raymarine ST70 and i70 multifunction displays (2017)
• Raymarine Quantum digital radar (2017)
• Raymarine ST7000 Autopilot with electric linear drive to steering quadrant (spare)
• Raymarine ST6002 Autopilot with electric linear drive to steering quadrant
• Raymarine A650 AIS Transponder (2017)
• AIS and other NMEA data transmitted on WiFi to allow AIS tracking on tablet with Navionics
• Interphase Probe Forward-facing sonar
• NASA Clipper PC Pro Navtex (2007)
• VHF ICOM M604 with remote handset at helm
• Handheld VHF
• SSB ICOM M802 + Pactor III modem (2007) (Not in commission)
• LED navigation lights including Tricolour and Anchor (2012)

DECK

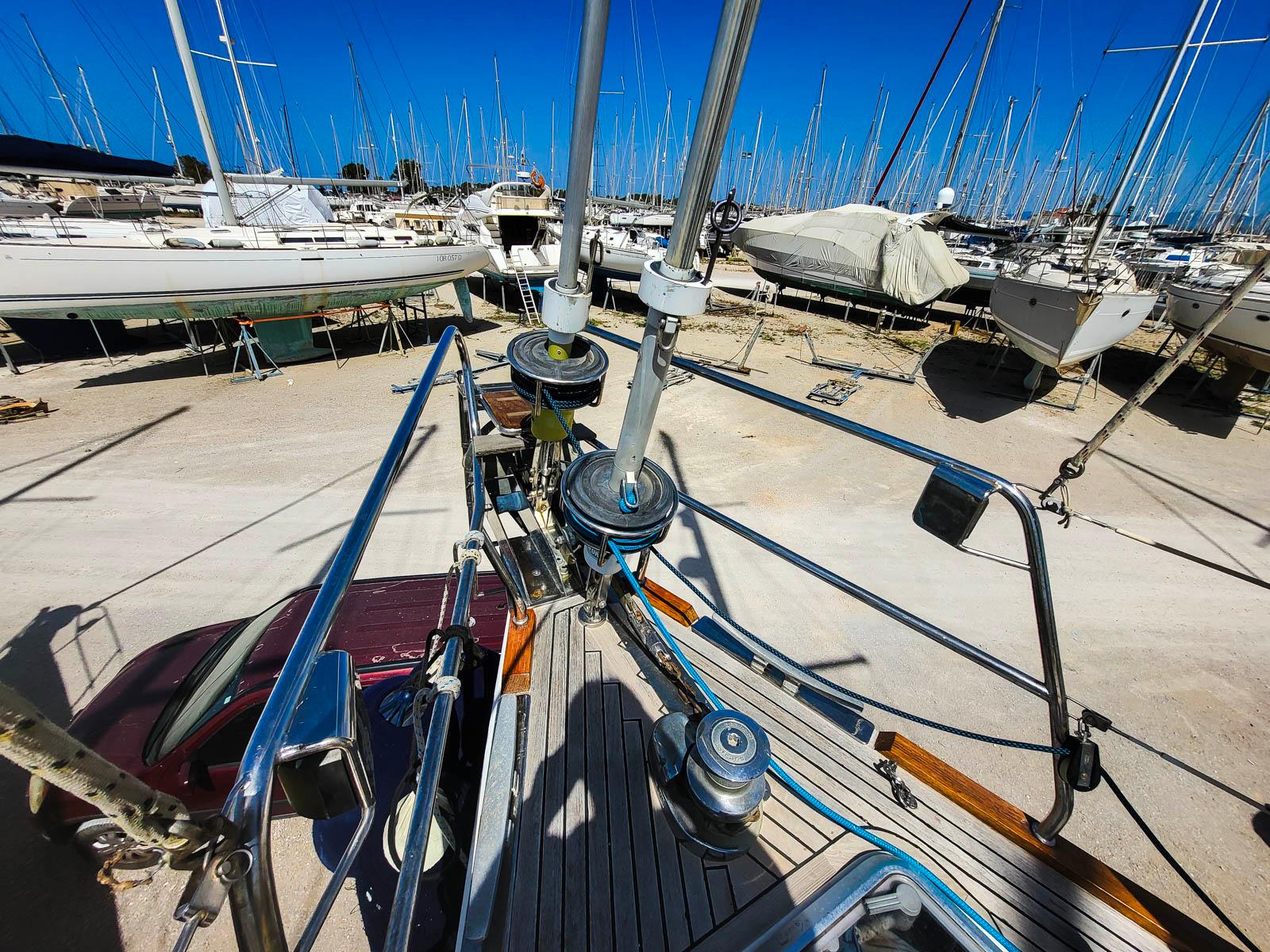

• Electric windlass Lofrans project 2 1500W (Motor rewound 2018)
• Bower anchor: Rocna 25kg 75m chain 10mm
• Kedge anchor: Fortress FX-23 mounted on pulpit bracket, 10m chain plus 50m rope
• Bimini, Spray hood, plus boom tent
• Folding cockpit table
• Cockpit cushions
• Teak Passarelle
• Bow Steps
• Warps and boathook
• Fenders and fender covers
• Sun covers for the hatches and winches
• Dinghy: Aquafax 3.0m with air deck (new 2021) with sun cover
• Outboard engine: Tohatsu 2 stroke 3.5hp

SAFETY

• Offshore Arimar 6 man life raft (2012)
• Oceansignal EPIRB 1 cat2 with GPS (2021)
• 2 lifebuoys with light
• Throwline
• Flares including Ocean Signal rescueME EDF1 Electronic Distress Flare
• Lifejackets

CANVAS

• Bimini
• Spray hood
• Boom tent

TENDER

• Dinghy: Aquafax 3.0m with air deck (new 2021) with sun cover
• Outboard engine: Tohatsu 2 stroke 3.5hp

MISCELLANEOUS

• Teak Passarelle
• Bow Steps
• Warps and boathook
• Fenders and fender covers
• Sun covers for the hatches and winches

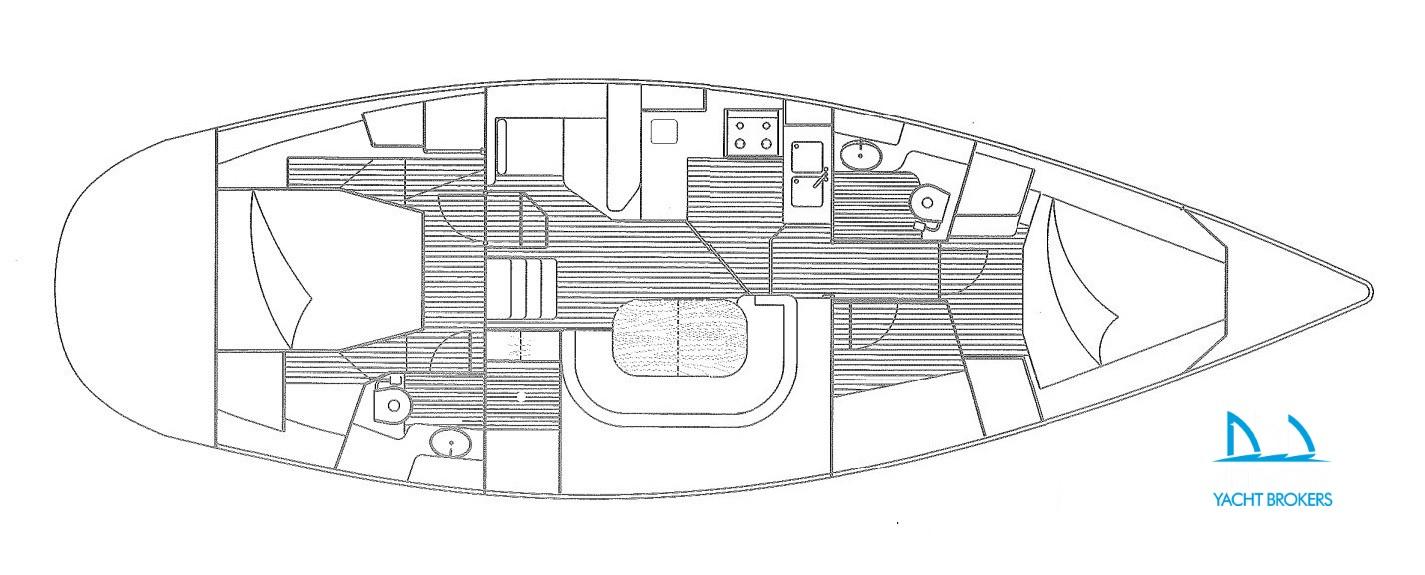

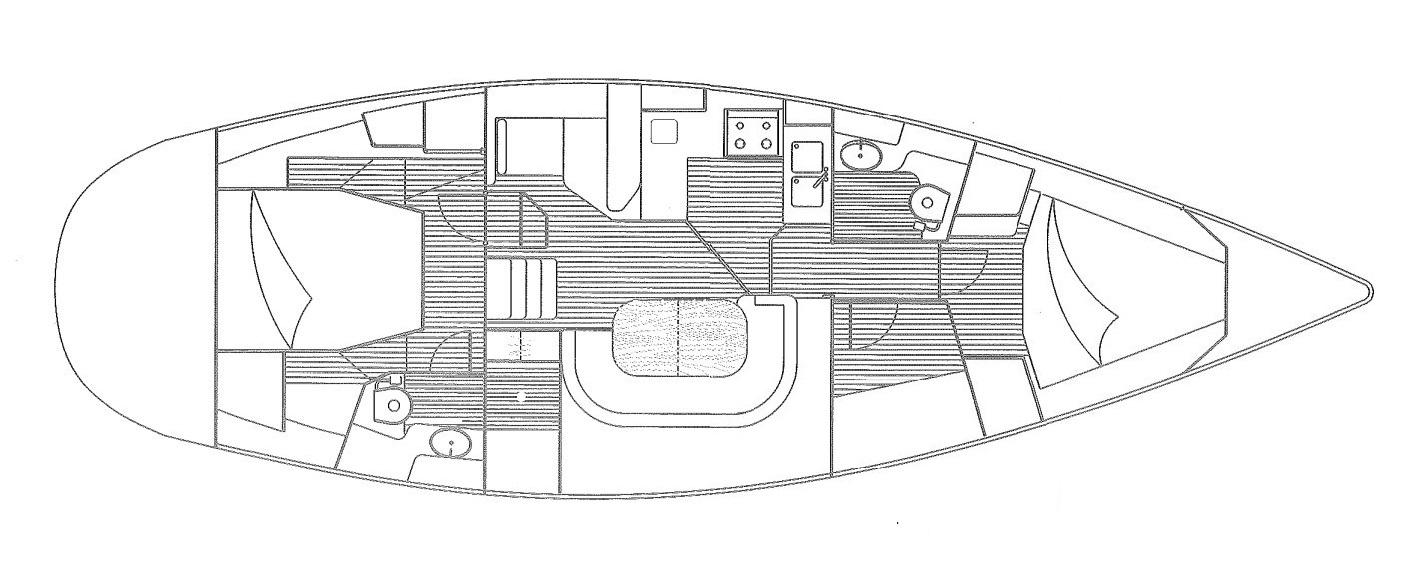

ACCOMMODATION

• Berths: Forward v-berth (2) persons, aft stateroom (2) persons
• Nav station/Chart table to port, aft of galley
• Galley: Port midship
• Dinette: Stbd midship

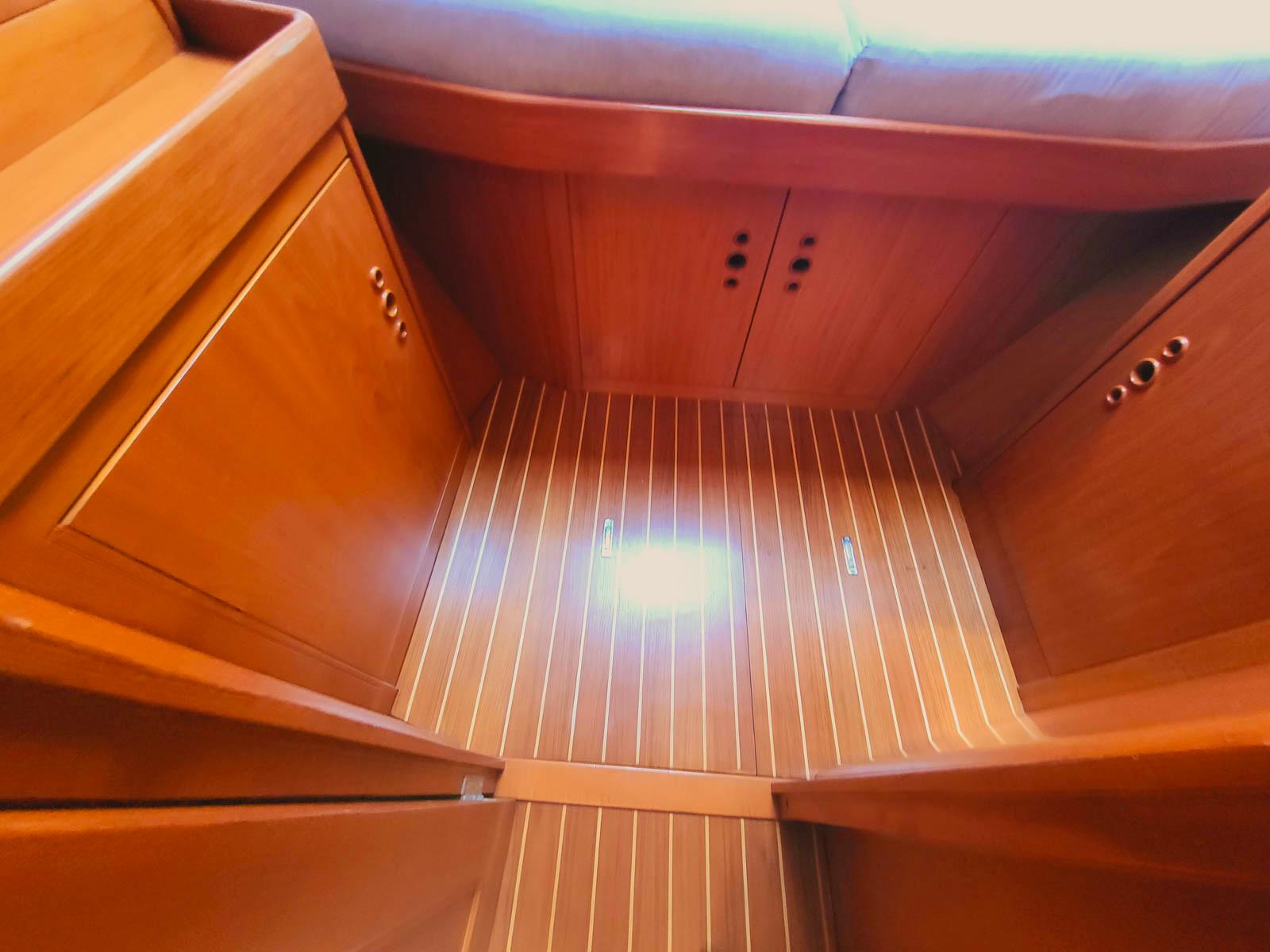

• Interior finished in Burmese teak
• Aft cabin with island double berth, ensuite heads with separate shower

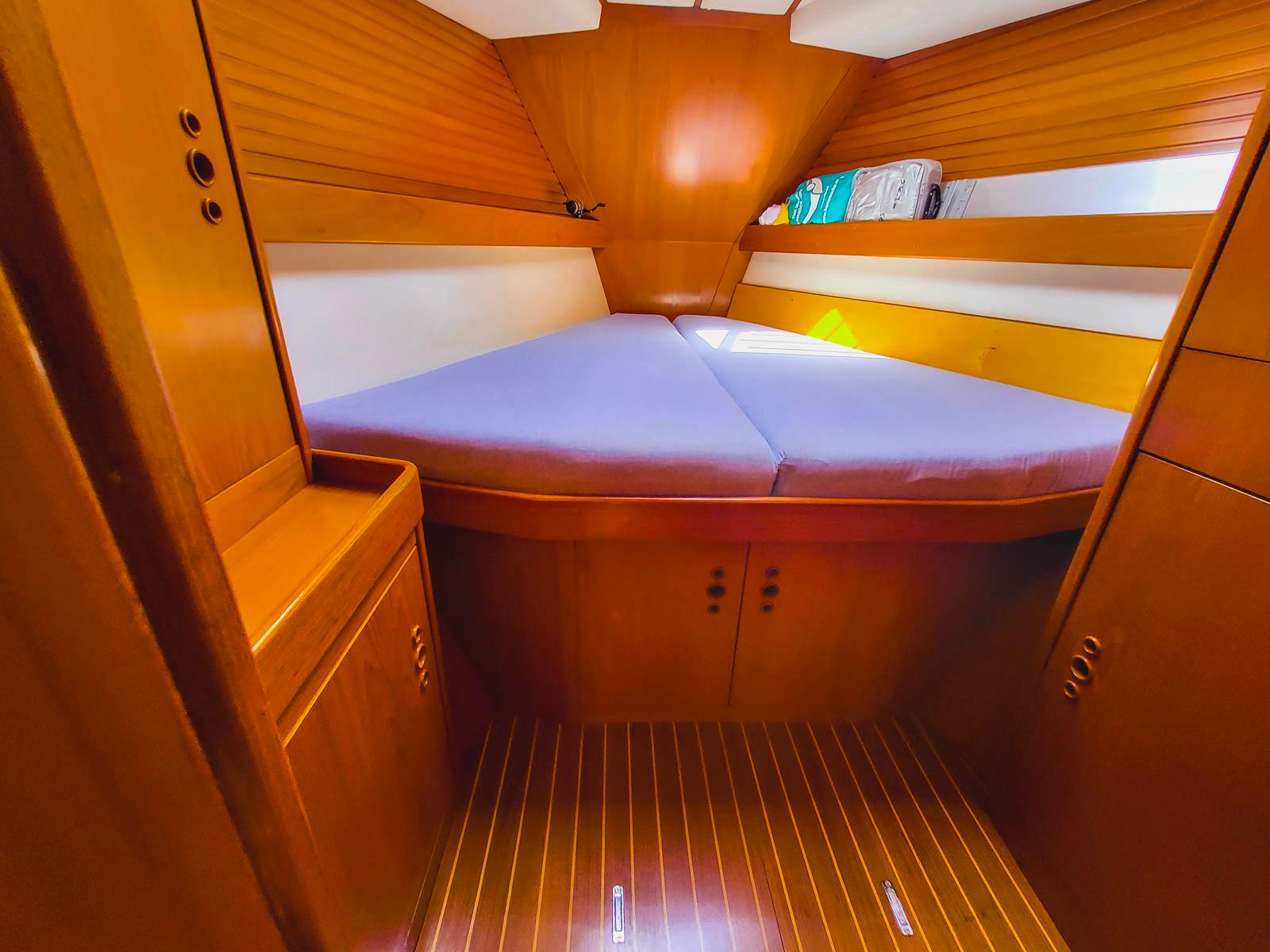

• Forward cabin with double vee berth, forward heads with shower

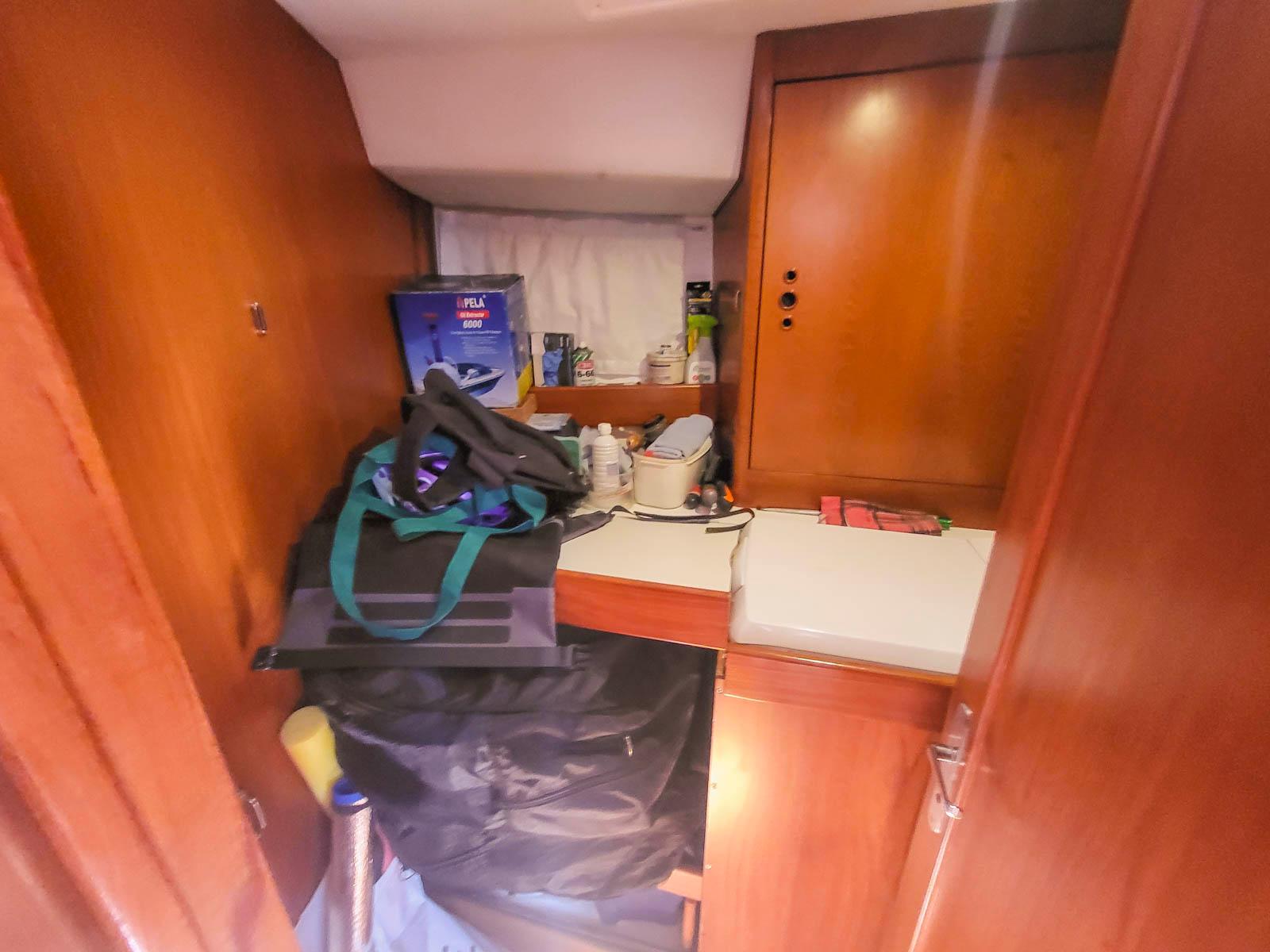

• Workshop/store cabin with washing machine, microwave; worktop converts to toddler berth
• Saloon table on hydraulic struts lowers to make double berth
• Saloon upholstery in Alcantara blue (2013)
• Deck saloon acrylic windows all replaced 2013
• Window shades for saloon: one set blackout, one set sun shade

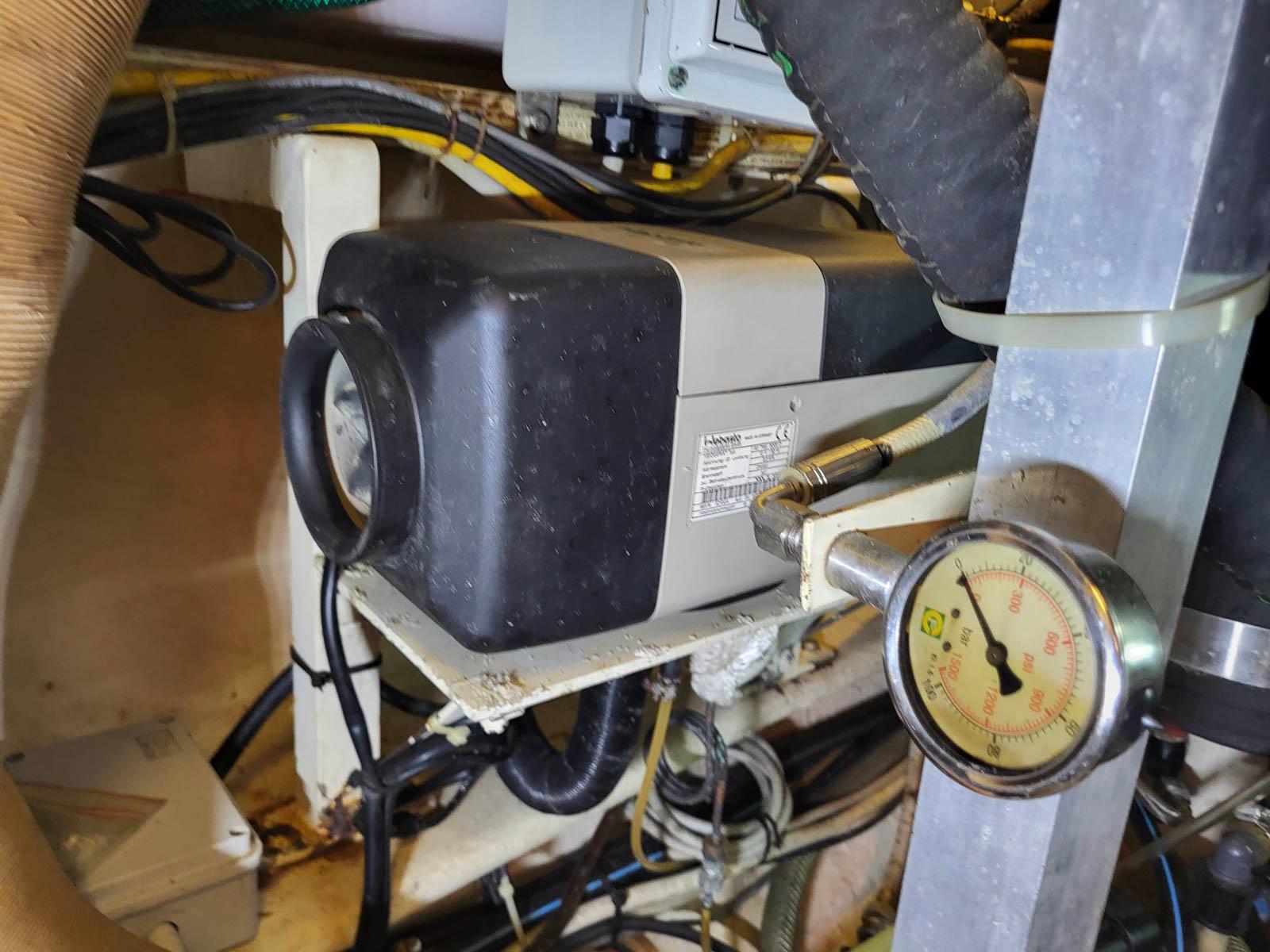

• Webasto diesel heating in all cabins
• Galley with double sink, salt water tap
• Pressurised freshwater dual pump + accumulator with water metering
• Water heater 1x 40L (electrical + engine heating)
• Force 10 gas cooker 2 burner, oven, and grill
• Microwave
• Fridge front opening 12V 140L
• Freezer 12V 90L top opening
• Cutlery, crockery, and utensils

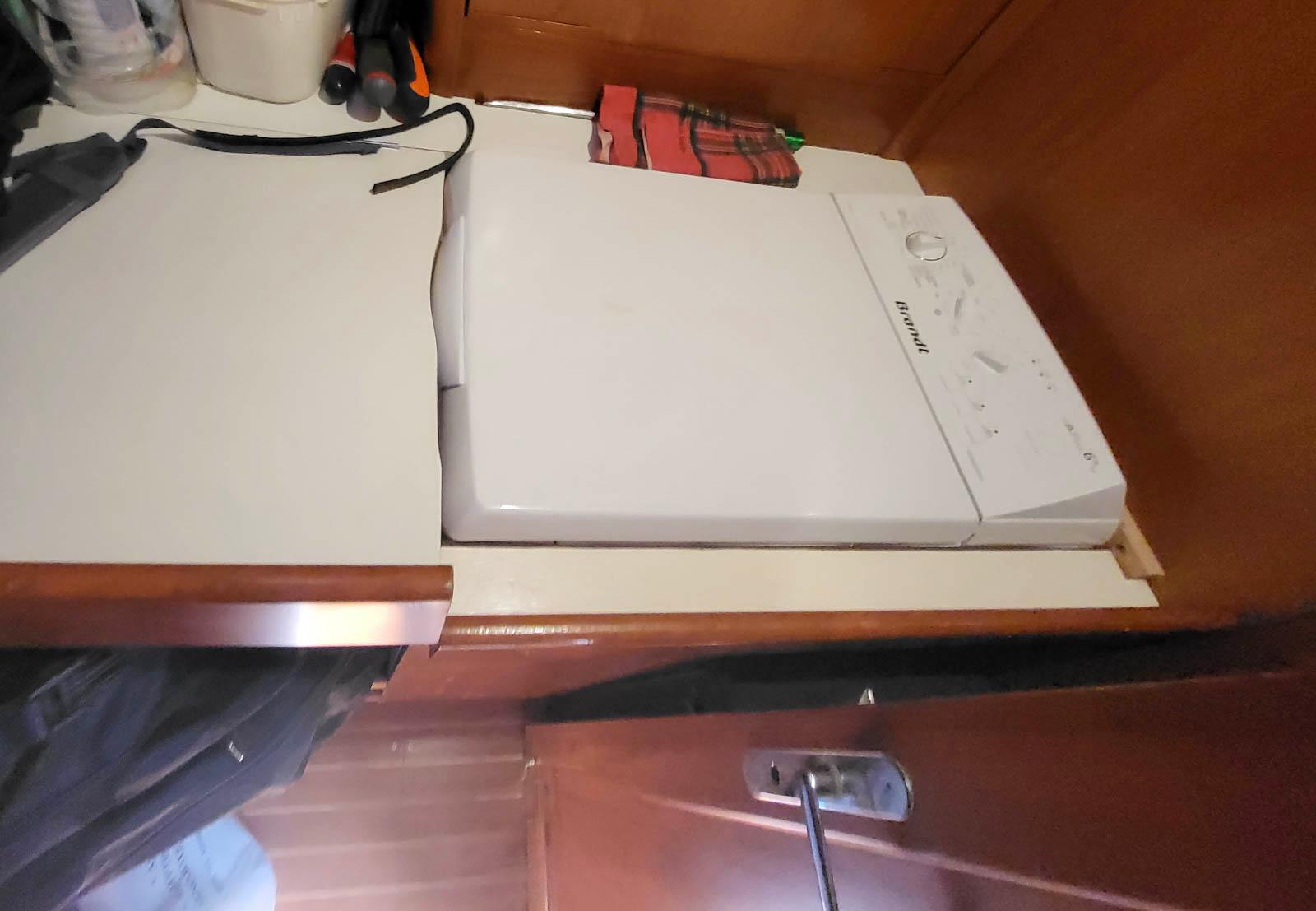

• Washing machine Brandt top loader 6.5kg (replaced 2018)
• TV with integrated DVD
• Fusion RA210 sound system, speakers in saloon and cockpit, Bluetooth linked to smartphone (2022)
